UNICART 3L/25

Category
Lines for elastic folders and small cases with snap fasteners
video

UNICART 3L/25

LINES FOR ELASTIC FOLDERS AND SMALL CASES WITH SNAP FASTENERS

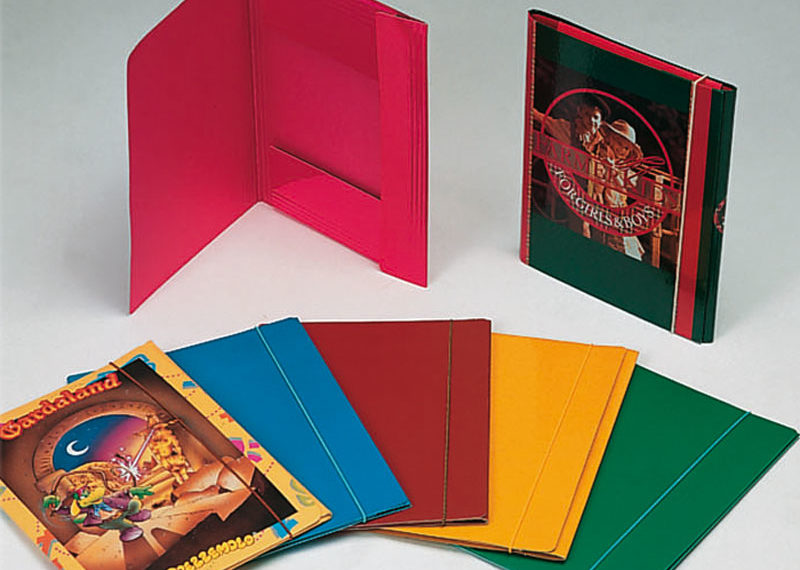

Automatic line for assembling folders with round straight elastic band having 2 round metal tags, equipped with units for side flap application and for collecting/delivery of the final products in piles

Technical features

Materials:

– coated board

– fiber board or similar

– polypropylene

– rivets or eyelets standard range

– round elastic band

– metal tag PE22-N2

Cardboard thickness: from 0,9 mm to 1,5 mm

Capacity: up to 25 cycles/min.

Electrical power req.: 13 Kw

Compressed air: 600 NL/min. (pressure 7 bar)

Overall dimensions: L=5500mm W=4600mm H=2400mm
