PEN LOOP

LINES FOR ELASTIC FOLDERS AND SMALL CASES WITH SNAP FASTENERS

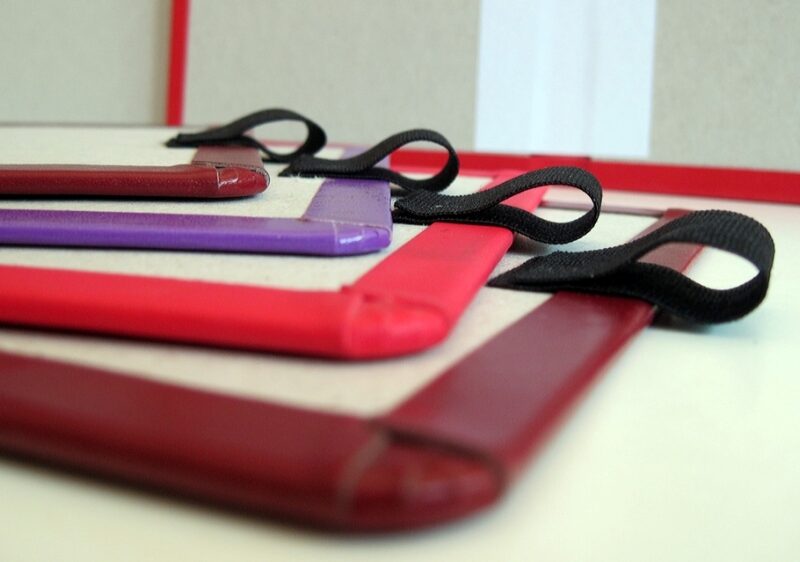

Half-automatic unit to apply one elastic pen loop onto agenda and diary cases   or onto already cased-in products by hot-melt – Equipped with hot-melt heater

Product feeding  by hand
Cycle for elastic band cutting, glue application, loop shaping and closing as a ring  fully automatic

Technical features

Used materials: Flat agenda and diary cases or already cased-in products
Elastic width  (standard): 8 mm, 10 mm, 12 mm, 15 mm, 18 mm, 20 mm and 25 mm
Pen loop diameter : min. 8 mm – max. 10 mm

Case thickness : min. 1 mm – max. 3,5 mm
Production capacity:   up to  10 cycles/minute
Power required : 4 Kw
Pneumatic consumption: 100 NL/minute (7 bar)
Overall dimensions (gluer included) : L=1500 mm W=1000 mm            H= 2000 mm
