SC/T 1000

GROOVING, MAGNET APPLYING AND WRAPPING MACHINES FOR LUXURY RIGID BOXES

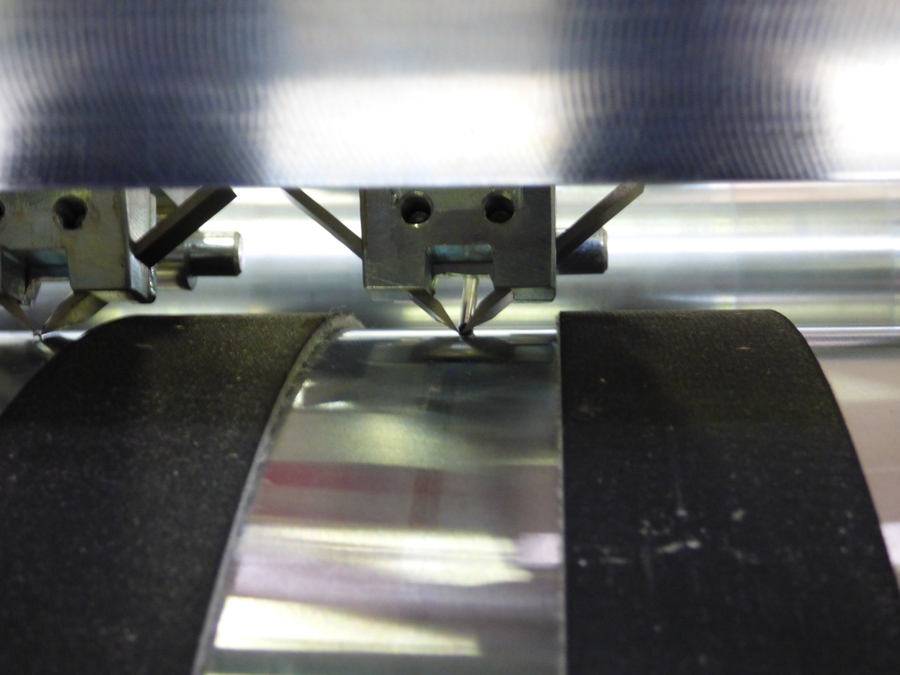

Automatic rotative grooving machine for board cases, supplied with double feeder, corner cutting unit in line, grooving unit for “V”-shape grooves, automatic waste removal device and Nr. 02 product conveyors.

Technical features

Board size range: min. 130 mm x 130 mm – max 1040 mm x 700 mm
Groove distance: min. 70 mm (for blades fixed on the same supporting bar)
No limit for blades installed on two different supporting bars
Min corner sizes: 12 mm x 12 mm
Board thickness: min. 1 mm – max 4 mm
Grooves number per cycle: max 8
Production capacity: 60 cycles/minute (up to 40 linear metres/minute depending on the processed size)
Electrical power required: 4Kw/380V
Overall dimensions: L= 5500 mm W= 3600 mm H = 2100 mm
