LINEA ELAP 15

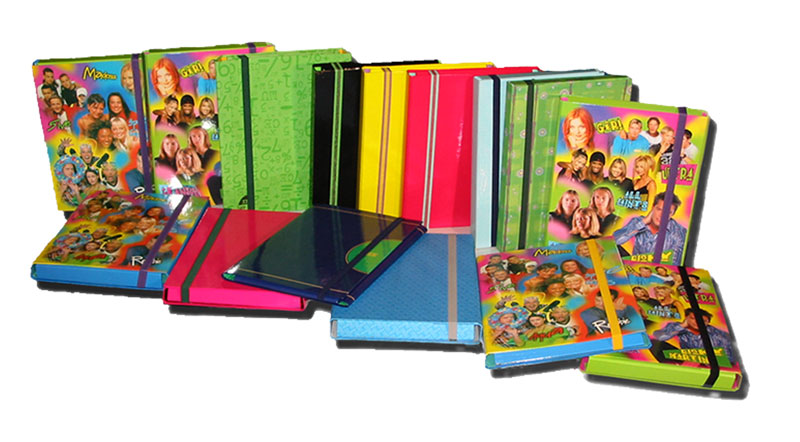

LINES FOR ELASTIC  FOLDERS AND SMALL CASES WITH SNAP FASTENERS

(CORD-R+FLAP15+ELAP15)
Automatic line for creasing folders, automatically riveting two side flaps and fastening one elastic band 15 mm wide.

Technical features

Material:

– coated board

– fiber board or similar

– rivets with cap or auto-punching eyelets

– elastic band 15 mm wide

Cardboard thickness: 1 mm to 2,5 mm

Capacity: up to 18 cycles/min. (with 2 rivets/eyelets per flap)

Electrical power req.: 3,7 Kw

Compressed air: 200 NL/min. (pressure 7 bar)

Overall dimensions: L=4800mm W=1500mm H=2000mm
