AFF-15 / AFF-S

LINES FOR FILES WITH TAPES AND FOR SUSPENSION FILES

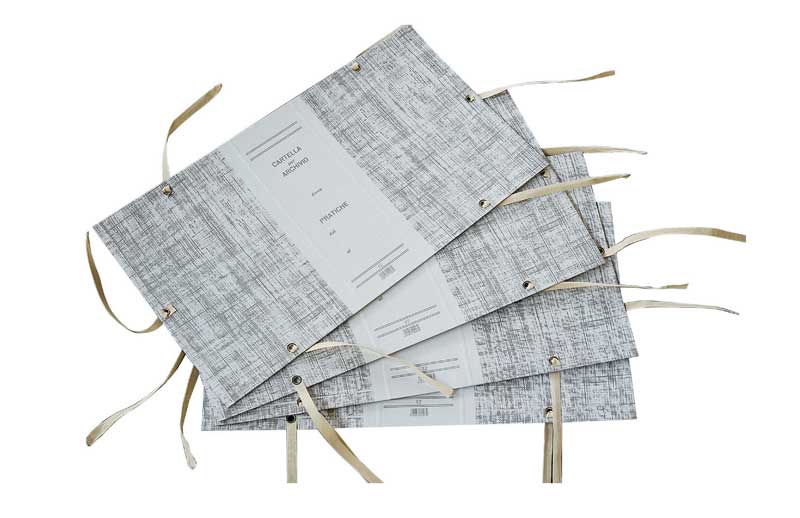

Semi-automatic machines for fastening tapes (3 or 1) by metal eyelets onto cardboard files.

Technical features

Material:

– coated board

– fiber board or similar

– auto-punching eyelets standard range

– tape in reels

Cardboard thickness: 1 mm to 3 mm

Capacity: up to 10 applications/min. (5 files)

Electrical power req.: 2 Kw

Compressed air: 240 NL/min. (pressure 7 bar)

Overall dimensions: L=2000mm; W=1600mm; H=1500mm;
