SWP-1000

Category
Grooving, magnet applying and wrapping machines for luxury rigid boxes
video

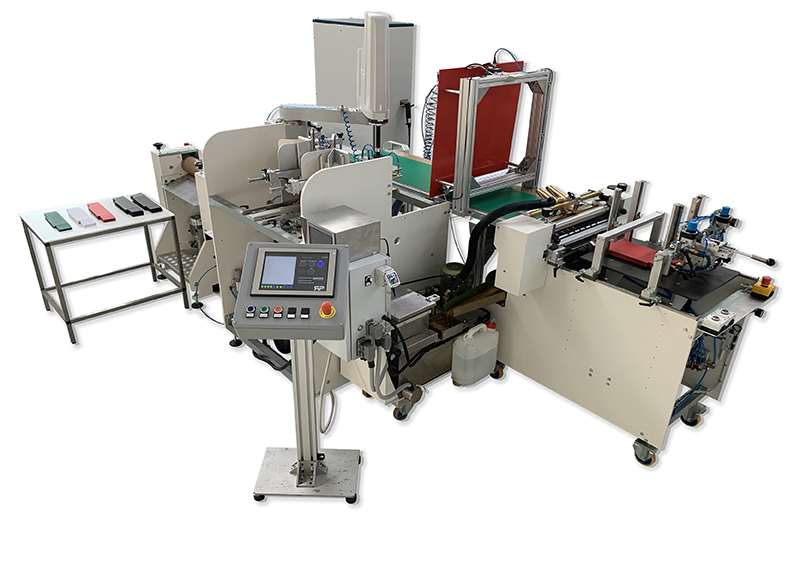

SWP-1000

AUTOMATIC LINE FOR THE PRODUCTION OF WRAPPED SIDE WINGS FOR COLLAPSIBLE BOXES

Technical features

Materials:

-die-cut paper

-board

-soft board

-animal glue

Paper weight: min 110 gsm  to  190 gsm

Board weight: from 1,5 to max 2,5 mm

Soft board weight: min 350 gsm

Sizes: show more

Job-size change over: 20 min

Production capacity: up to 900 side wings/hour (subject to sizes, materials and operator)

Operator/s req.: nr.1

Electrical power required:

Pneumatic consumption:

Overall dimensions: L=4000mm W=2200mm H=2100mm
