SCM-400 NEO

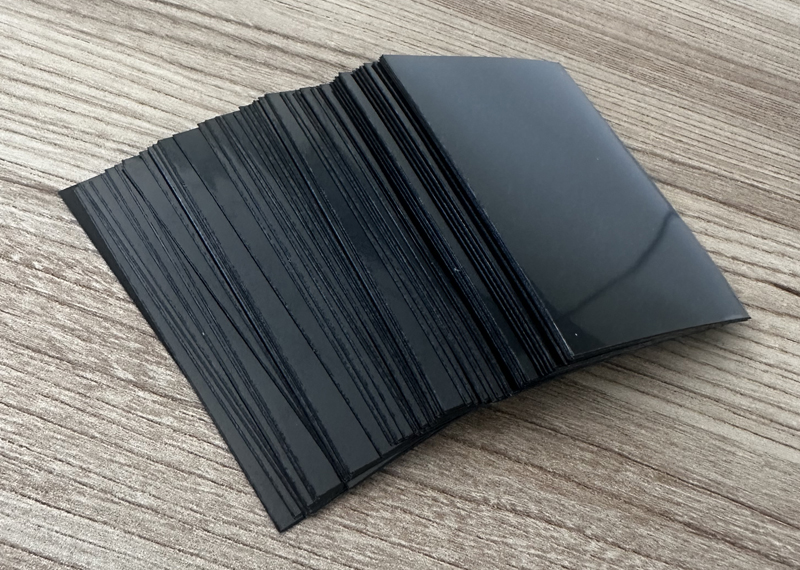

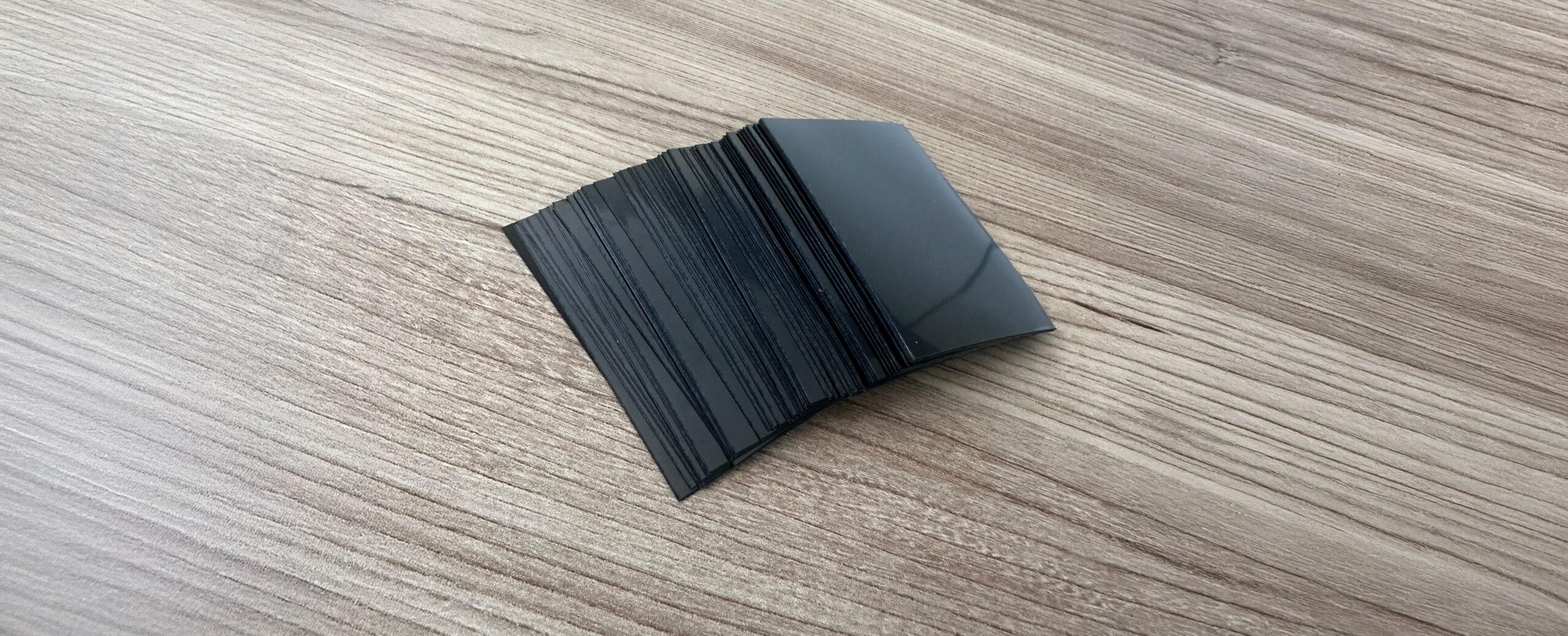

AUTOMATIC LINE TO PRODUCE GAME CARD SLEEVES WITH 4-UP MANUFACTURING

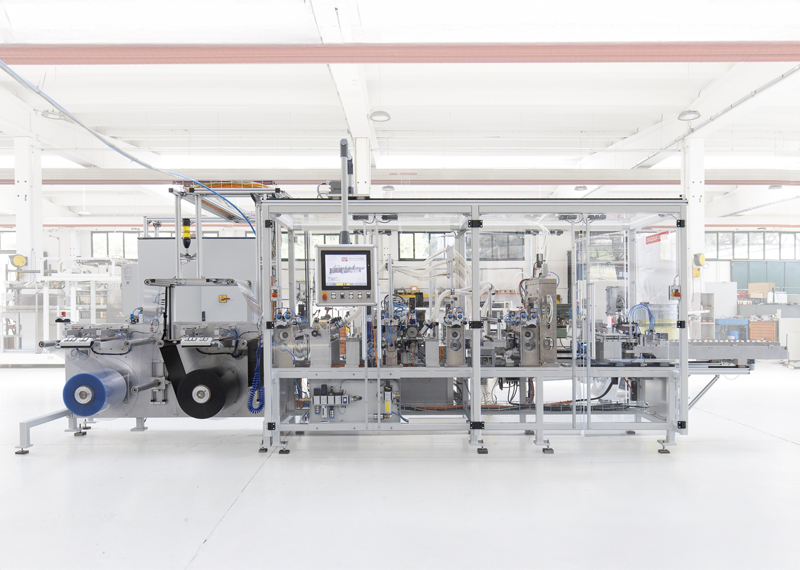

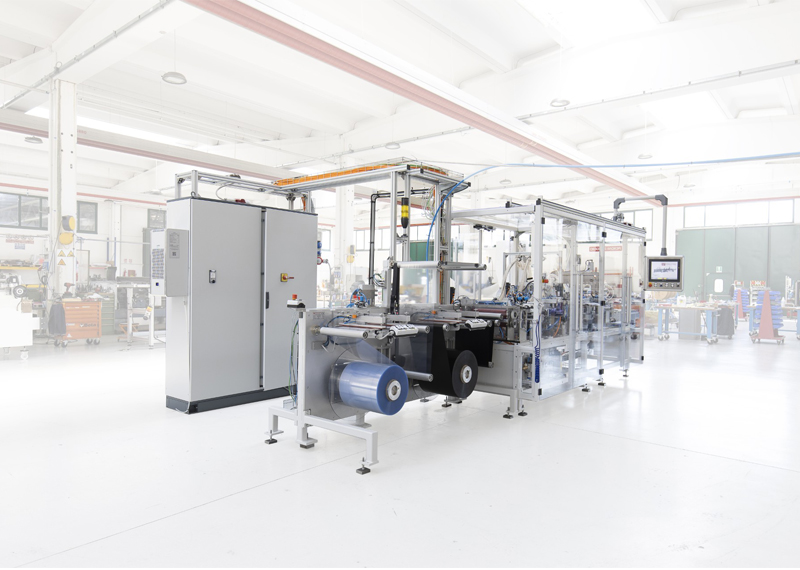

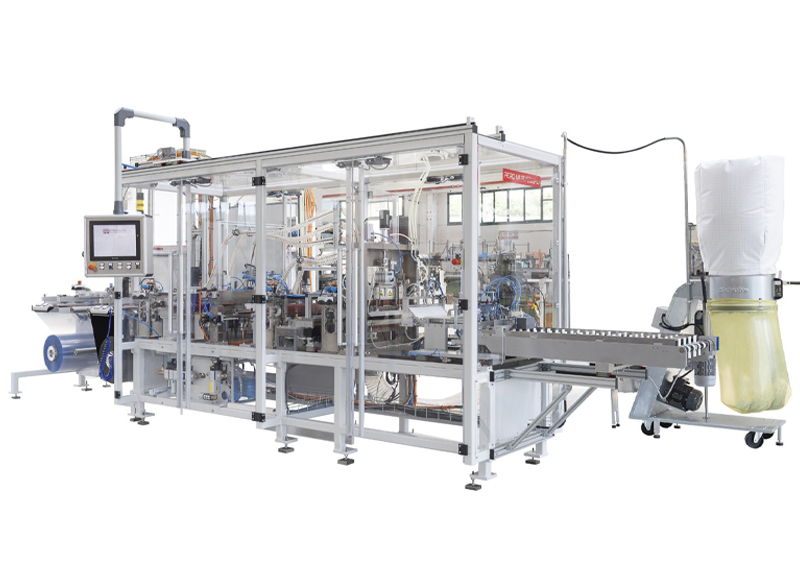

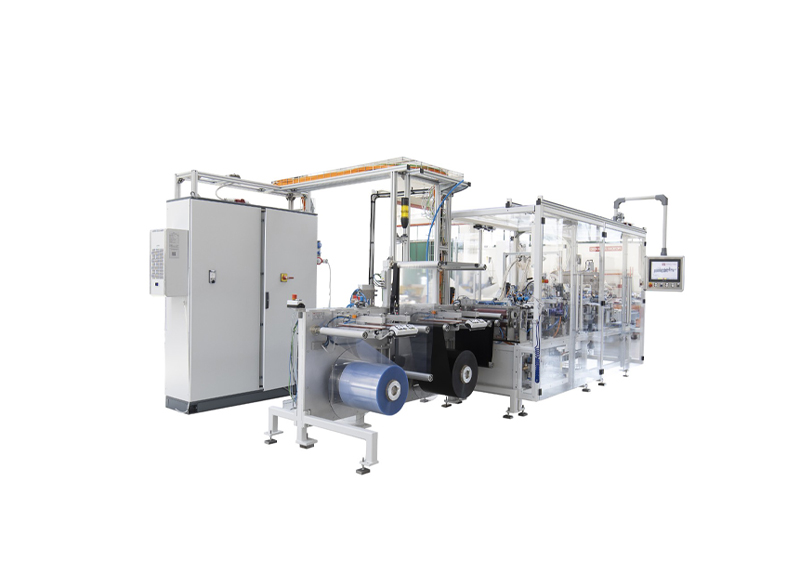

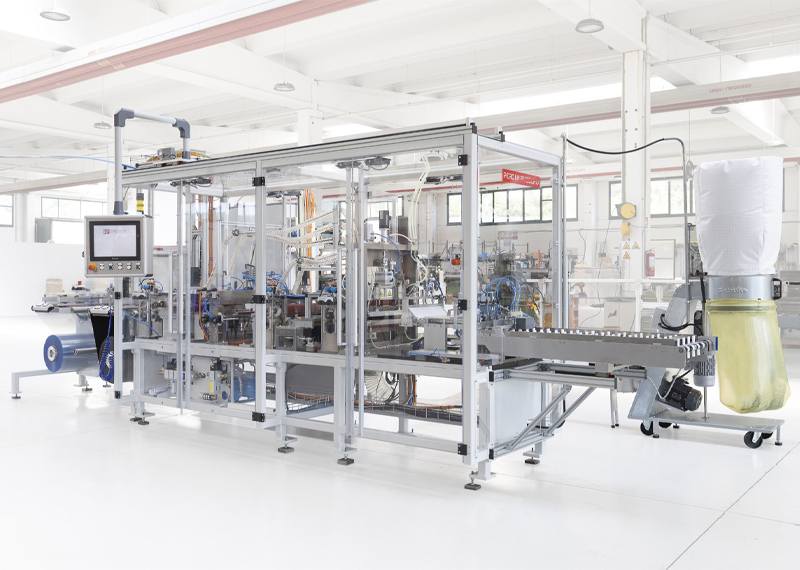

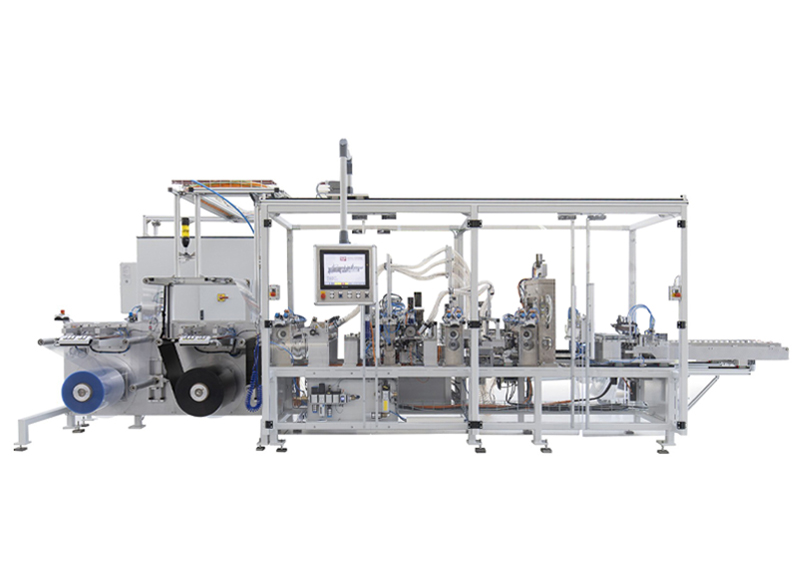

The SCM 400-NEO is an automatic machine specifically designed to produce game card sleeves.
The system utilizes a 4-up manufacturing process during each cycle to ensure high-volume output. It features advanced 35 KHz rotary ultrasonic sealing units and Beckhoff PLC control technology for high precision and consistent seal quality.
Technical features
Working Dimensions:
– max. width: 400 mm
– max. feed: 310 mm
Usable Materials:
– commercial quality PP film
– Thickness: from approx. 2 x 0.075 mm to max. 2 x 0.15 mm
Film Unwinding:
– max. roll outside diameter: 600 mm
– standard core diameter: 76 mm (other diameters available on request)
Production Capacity:
– mechanical output: up to 100 cycles/min
– production yield: up to 400 pieces/min
(minimum yield approx. 336 pieces/min)
(Indicative data subject to film thickness, material quality, and operator skill)
