AGD/ER

LINES FOR ELASTIC FOLDERS AND SMALL CASES WITH SNAP FASTERNERS

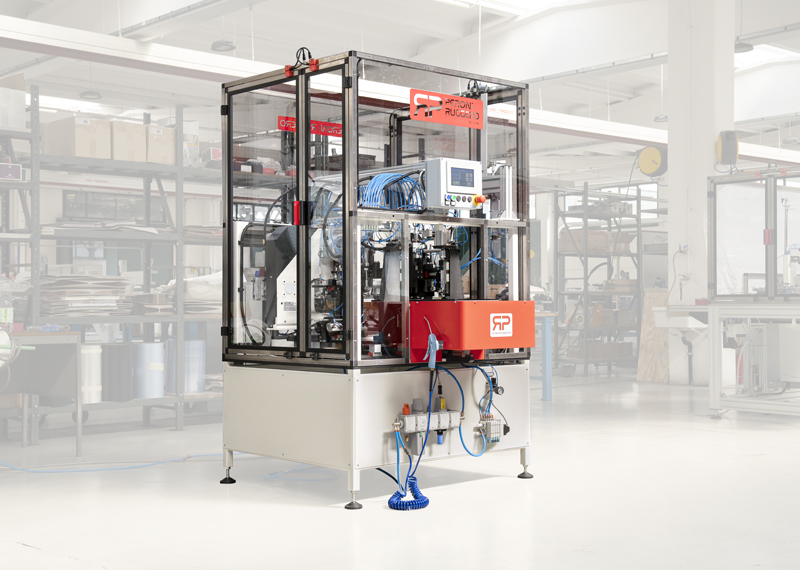

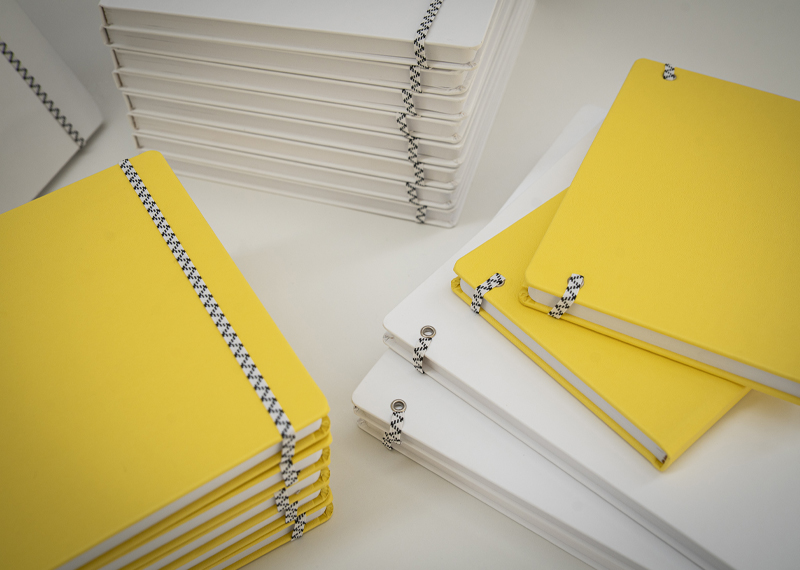

Half-automatic machine to apply one flat elastic band onto spiral note books by Nr. 02 eyelets or rivets.

Technical features

Used materials: flat cases or complete note books with max. 25 mm spine, flat elastic band 5 mm large (standard), metal eyelets or rivets as per your samples
Board thickness:  1 mm up to  2,5 m
Production capacity: up to 8 cycles/minute
Product size range: min. 100 mm x 120 mm   max. 340 mm x 510 mm
Power required: 1,5 Kw
Pneumatic consumption: 80 Nl/minute (7 bar)
Overall dimensions: L=1400 mm W= 1450 mm H= 2100 mm
