ABM 60 + MODULO 400

Category
Metal edging and lever-arch file assembling lines
video

AMB 60 + MODULO 400

METAL EDGING AND LEVER-ARCH FILE ASSEMBLING LINES

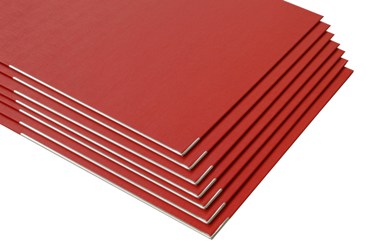

ABM 60 Fully automatic metal edging machine to apply 2 protection corners onto lever-arch file cases, connected by transport tape with MODULO 400 Automatic line for the assembling of lever-arch files – Production capacity: 50 cycles/minute

Technical features

Used materials:

– coated board

– grey board or similar

– tinned metal strip

Metal strip:

height 6,95 mm (+ 0, – 0,15)

thickness 0,25 mm (± 0,01)

Corner size:

short side 30 mm

long side 30 up to 250 mm

Board thickness: 1,7 mm up to 2,8 mm

Production: up to 50 cycles/min.



The two lines will be made out according to the customer’s requirements

For overall dimensions and consumptions, see the single machine brochures
